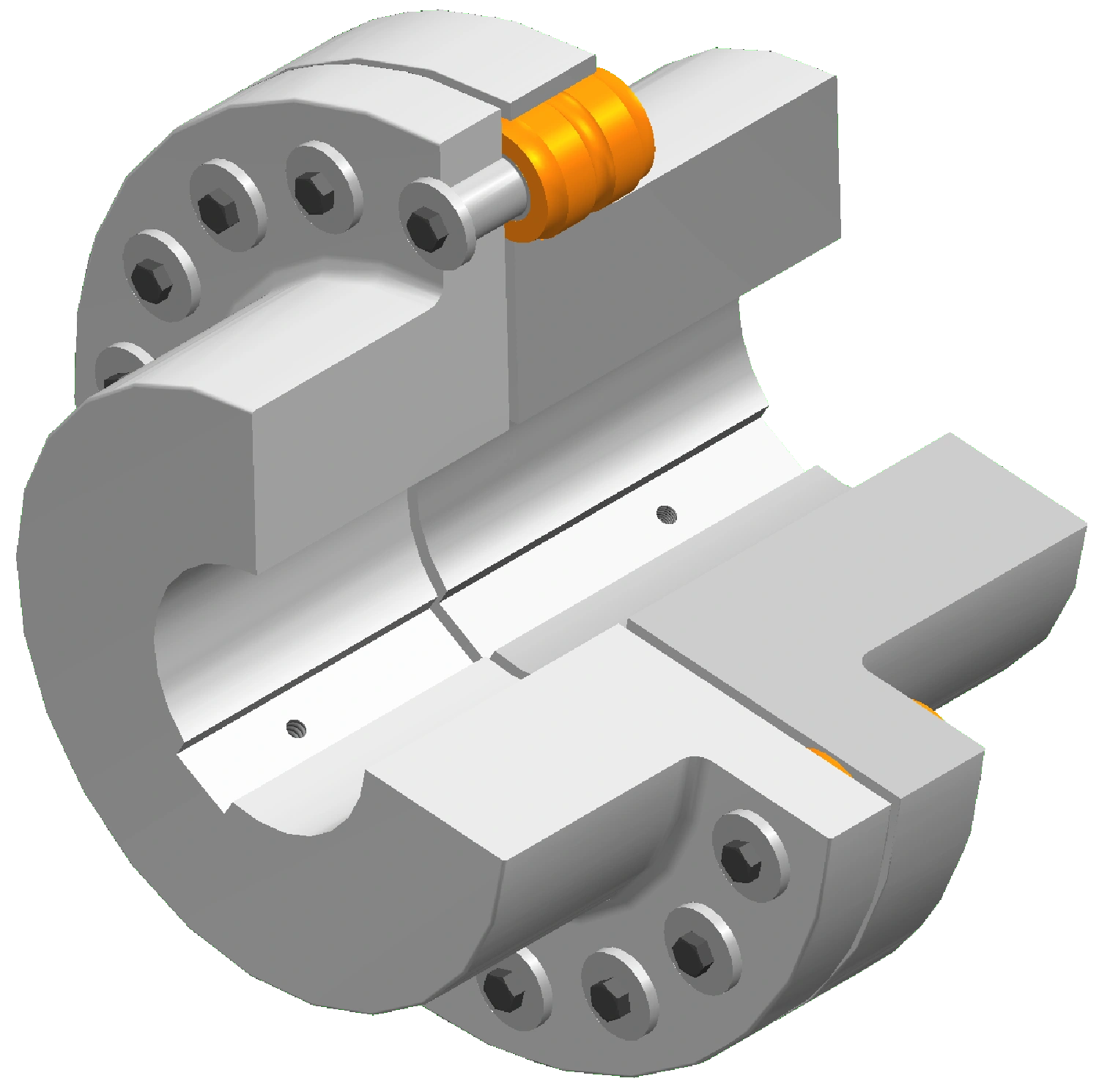

The VEBOFLEX-N Elastic pin/bush coupling well suited for high torques. This type of coupling is also available with brake-drum, brake-disc and break-pins. The coupling halves are made of grey cast-iron (standard), spheroidal cast-iron, steel or stainless-steel. Elastic elements are made of NBR.
Applications: i.e. mixer drum drives, screw pump drives, cranes, cableway drives and the low-speed side of gearboxes.
VEBOFLEX-N
|
Description |
TkN (Nm) |
Dmax (mm) |
|
standard |
150 ... 552.000 |
38 .. 480 |
Documentation
CAD Models
3d Solid

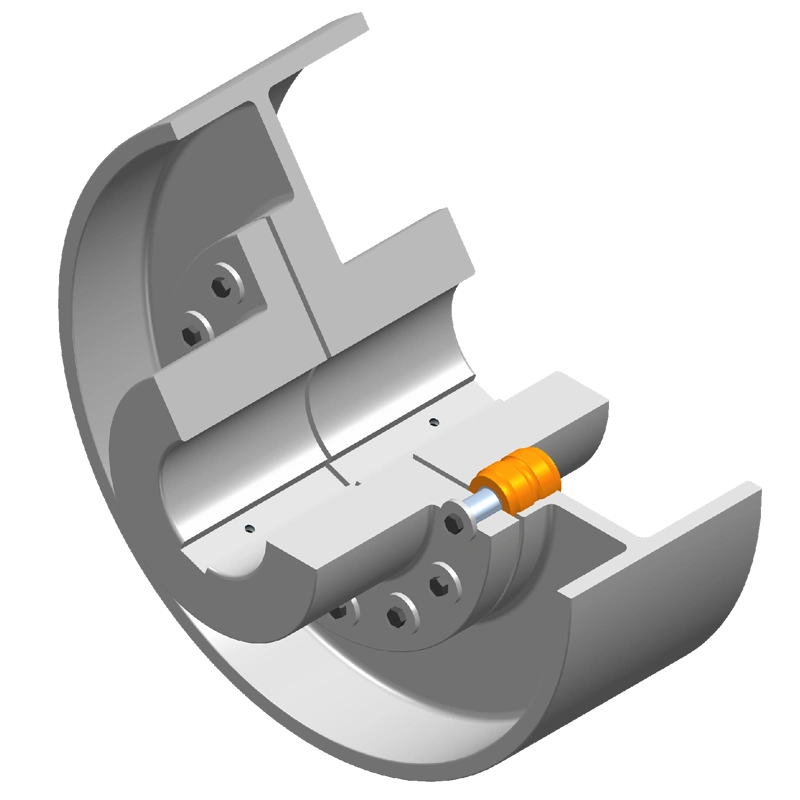

VEBOFLEX-N
BTG
|
Description |
TkN (Nm) |
Dmax (mm) |
|
with bolted-on brakedrum |
150 .. 22.000 |
38 .. 200 |
Documentation

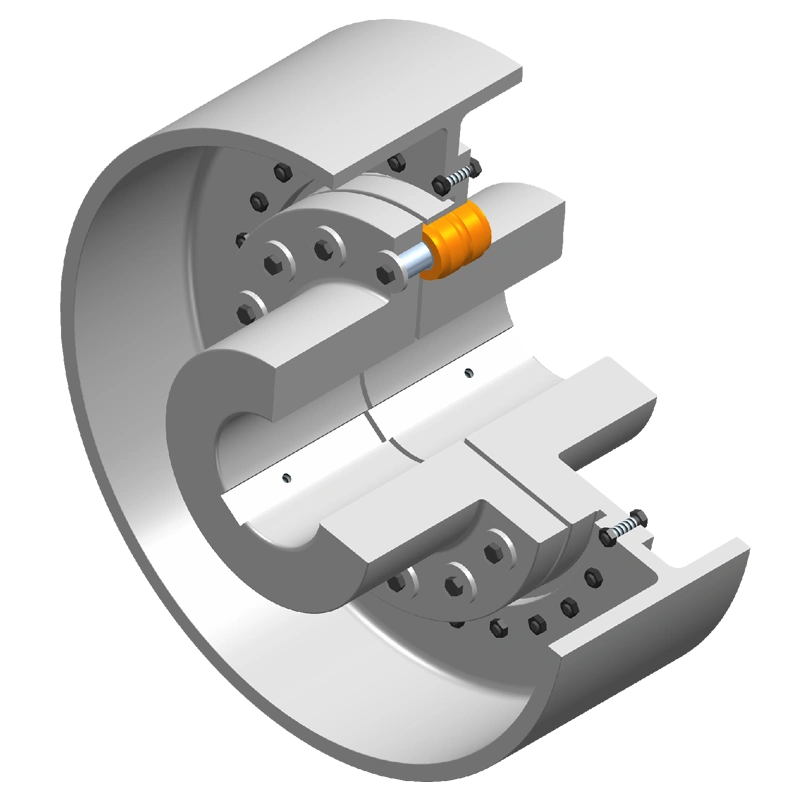

VEBOFLEX-N
BTA
|
Description |
TkN (Nm) |
Dmax (mm) |
|
with brakedrum |
150 .. 22.000 |
38 .. 200 |
Documentation

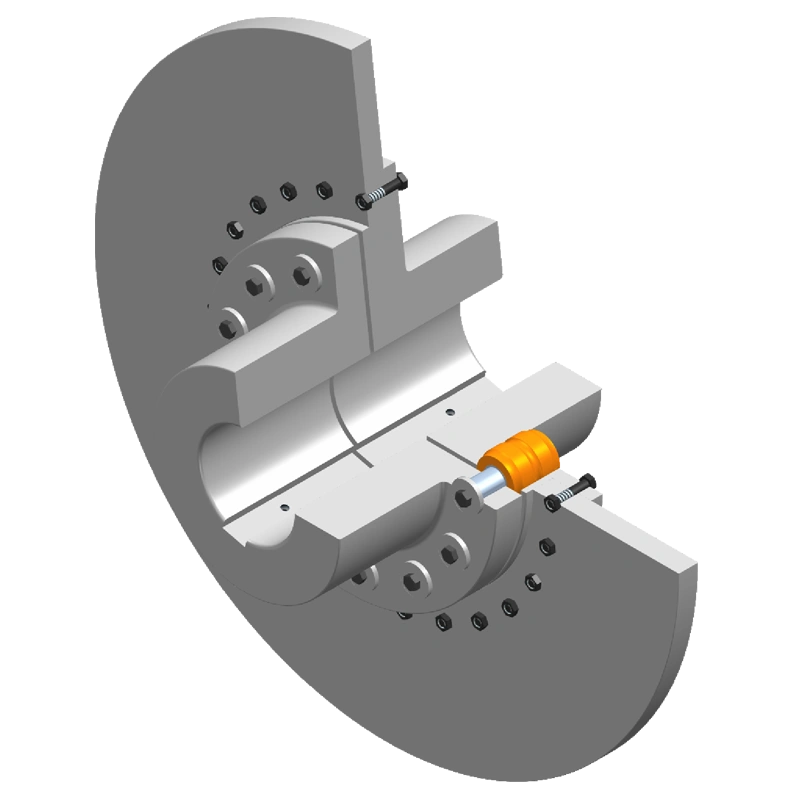

VEBOFLEX-N
BSR
|
Description |
TkN (Nm) |
Dmax (mm) |
|
with bolted-on radial replaceable brake disc |
150 .. 15.600 |
38 .. 180 |
Documentation
CAD Models
3d Solid
