Clamp couplings – similar to DIN-115 – consist of two split covers, which are mounted onto the shaft-ends and then bolted together. The material used is grey cast-iron or steel.
Suitable for light and middle duty applications.
DIN-115
A-GJL250-H
|
Description |
TkN (Nm) |
Dmax (mm) |
|
Type A – GJL250 – horizontal |
103 .. 50.000 |
20 .. 220 |

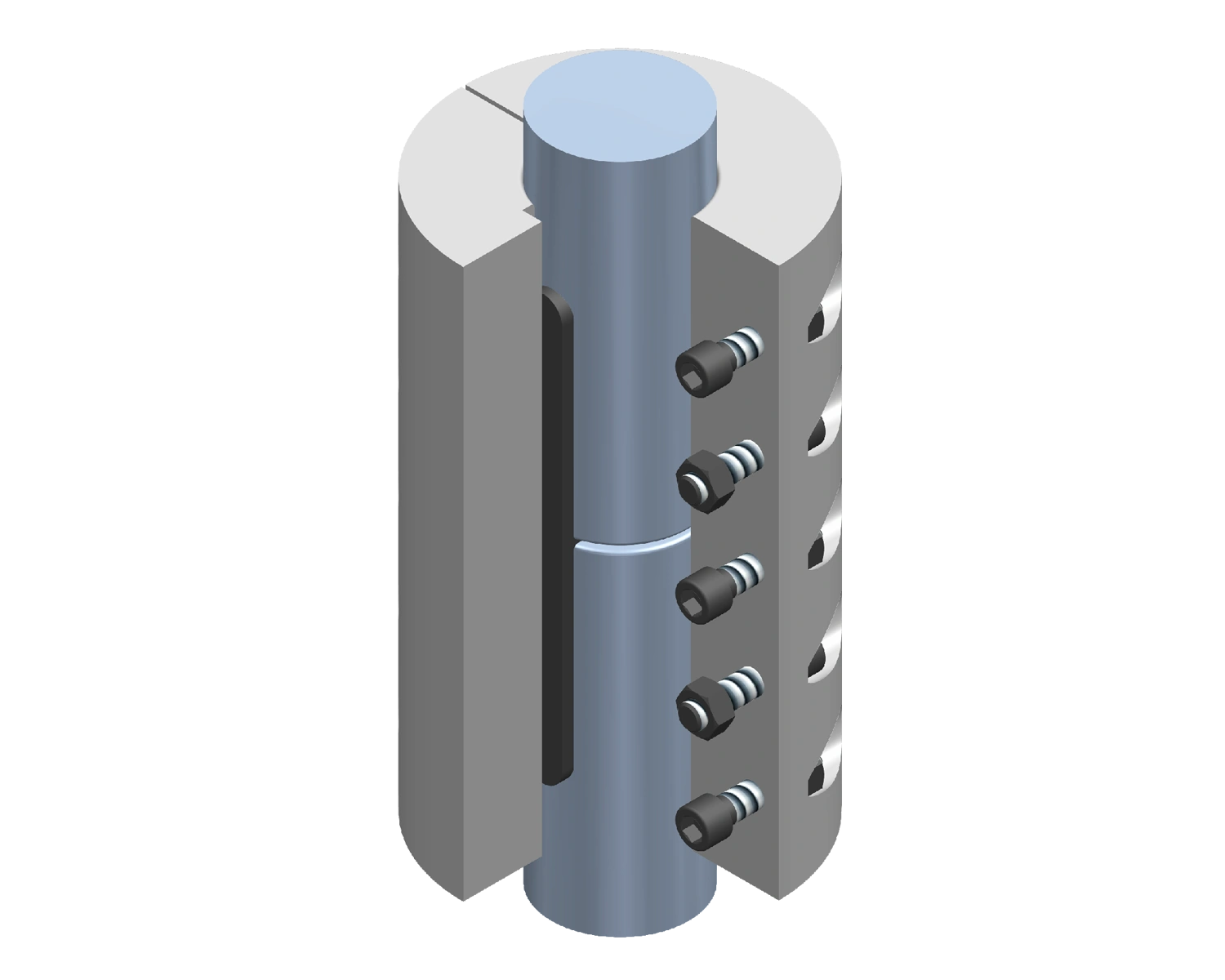

DIN-115
A-GJL250-V
|
Description |
TkN (Nm) |
Dmax (mm) |
|
Type A with suspension key – GJL250 – vertical |
103 .. 50.000 |
20 .. 220 |
DIN-115
A-C45-H
|
Description |
TkN (Nm) |
Dmax (mm) |
|
Type A – C45 – horizontal |
260 .. 80.000 |
20 .. 220 |
DIN-115
A-C45-V
|
Description |
TkN (Nm) |
Dmax (mm) |
|
Type A with suspension key – C45 – vertical |
260 .. 80.000 |
20 .. 220 |

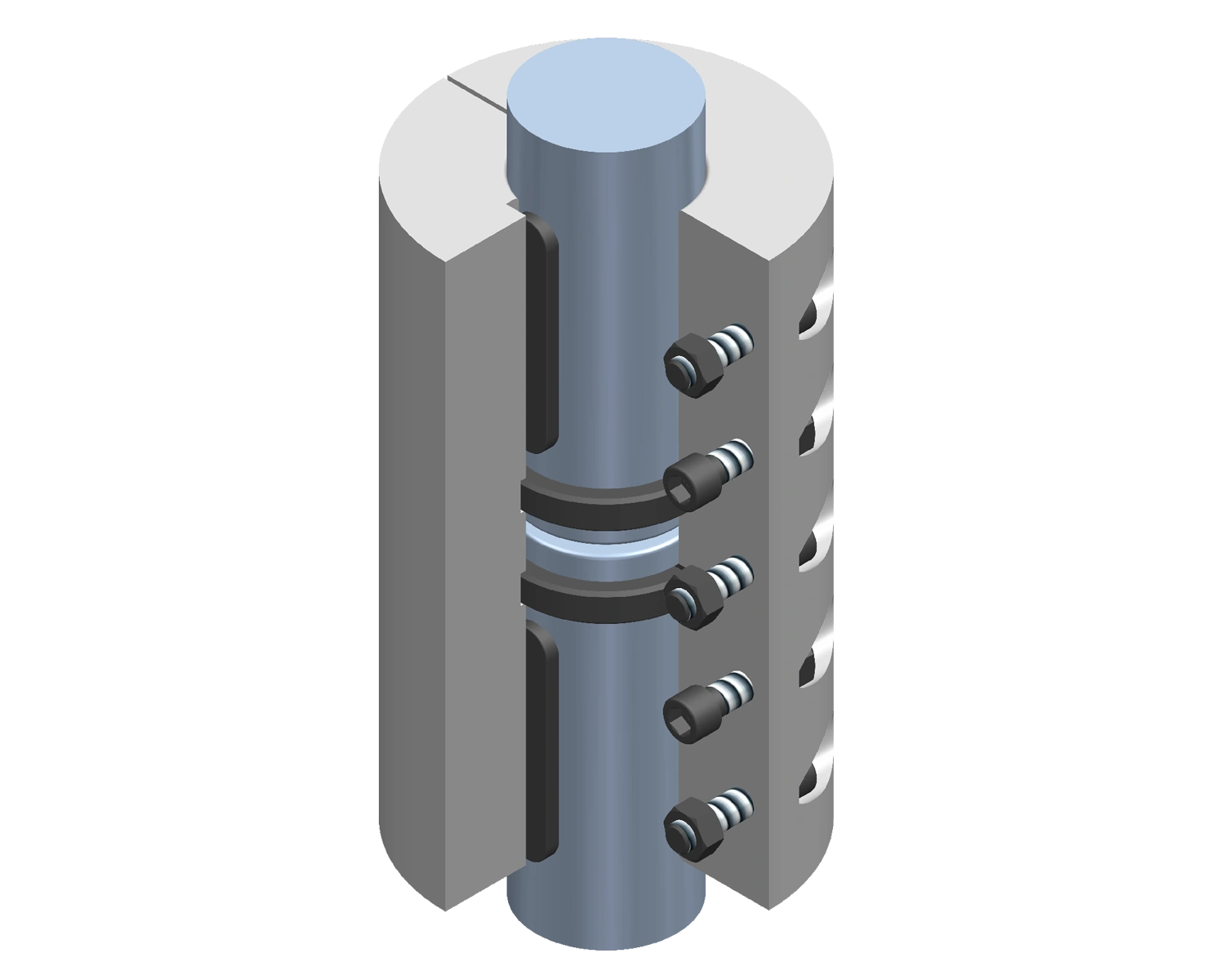

DIN-115
C-GJL250-V
|
Description |
TkN (Nm) |
Dmax (mm) |
|
Type C with insert ring – GJL250 – verticall |
206 .. 40.000 |
25 .. 200 |
DIN-115
C-C45-V
|
Description |
TkN (Nm) |
Dmax (mm) |
|
Type C with insert ring – C45 – vertical |
515 .. 56.000 |
25 .. 200 |
